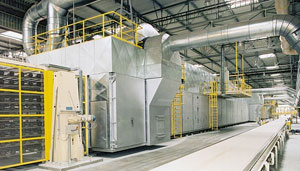

Gypsum production line

Gypsum production line is using this process flow: natural dihydrate gypsum is calcinated in a certain temperature for a period of time then the dihydrate gypsum is dehydrated and decomposed and the hydrated gypsum��CaSO4?1/2H2O) is the main components in products, which is building gypsum(calcined gypsum). According to the different temperature and pressure in dehydration decomposition, the products can be classified into the �� type building gypsum.

Gypsum production line is utilizing the high frequency vibration of cylinder. The steel ball or steel bar medium in the cylinder impacts materials by inertia force. When medium impacts the materials, the acceleration can be 10-159. So the gypsum production line features compact structure, small volume, light mass, low power consumption, high output, grinding size centralized, simplifed process, simple operation, easy maintenance and easy replacement of lining board medium , etc. The gypsum production line can be widely used for powder making in many industries, such as metallurgy, building materials, mining, refractory industry, chemical industry, glass, ceramic and graphite, etc.

Gypsum powder production equipment process flow

The vibration exciter in gypsum powder production line consists of four groups of main and auxiliary eccentric blocks. Adjusting the phase angle between auxiliary eccentric block and the main eccentric block, can change the size of excitation force to achieve the purpose of amplitude adjustment.

Approximate value of vibration grinding two amplitudes can be read from amplitude sign. The steel ball and steel bar are two kinds of the grinding mediums in the cylinder.

In the same diameter and graduation of the gypsum powder production equipments, the productivity when the steel bar is used as medium is higher than the productivity when the steel ball is used. When the steel ball is used as medium, grinding time will be longer to achieve the same powder particle size. However, the steel ball can achieve more fine particle size.

Common medium of vibration mill is the steel bar with sound 16 to 36 mm. After carburizing and quenching, the surface hardness of steel bar can be above HRC55. When the feeding grain size is more that 15mm, the larger diameter should be chosen. When the feeding grain size is less than 15mm, the smaller diameter can be chosen and it is better to use mixed gradation with two kinds of different diameter steel bars in the gypsum production line.

Gypsum production line performance and characteristics

1. Product scale can be 3-150000 tons per year.
2. Natural gypsum raw material requirements: The purity should be 75%-95%. Desulfurization gypsum raw material requirements: the purity should be 80%-96%.
3. Calcining kiln with various specifications: drying, calcining, dust collecting. Temperature control system is advanced, low energy consumption, stable product quality.
4. R series grinding machine can satisfy all sorts of calcining gypsum grinding and features with adjustable fine degree, large output, reasonable graduation and increasing strength.
5. Power consumption: 15 ~ 20 kw/tons of ripe gypsum powder; coal consumption: < 60 kg (Standard coal ) / tons of ripe gypsum powder
6. Fuel: all sorts of natural gas, heavy oil, light oil, etc
7. The factory areas: 6000 to 12000 m2
8. Environmental protection can reach the national environment and emissions standards, without waste water and waste gas.

Gypsum production line equipment

ZENITH Machinery is a professional mining equipments manufacturer and can provide gypsum crushing equipments and gypsum grinding equipments, such as gypsum crusher, gypsum grinding machine, etc. Jaw Crusher and Hammer Crusher are common gypsum crusher equipments.
